Take the guess work out of ordering Go Kart Parts.
All of these parts fit and work together and can be ordered in any combination to build or repair a go kart.
- SELECT PART
- ADD-TO-CART for each item you want to order
- Be sure to order the correct quantity needed
- Use the chart below to help
Used by many USA Manufacturers since 1960 including Manco, Yerf Dog, Taco, Rupp, Kenbar, Kartco and more.
*click on the Part Numbers below to display the Spec Sheet for each part
| PART# | DESCRIPTION |
QTY Needed
|
|
| 1144 | Wheel, 5″ Aluminum Front w/Installed 5/8″ Bearings and Hardware | 2 | |
| 1147 | Wheel, 5″ Aluminum Rear w/ Steel Insert and 3/4″ Step for 1″ Live Axle | 2 | |
| 2237 | Spindle side 1, 5/8″ x 4-1/2″ | 1 | |
| 2238 | Spindle side 2, 5/8″ x 4-1/2″ | 1 | |
| 7037 | Sawtooth Tire, Front 410/350 x 5 | 2 | |
| 7033 | Studded Tire, Rear 410/350 x 5 | 2 | |
| 7132 | Innertube 410/350 x 5 | 4 | |
| 1401 | Steel Axle, 1″ OD x 38″ | 1 | |
| 1861 | Bearing Kit for 1″ Live Axle: Bearings, Flangettes, Bolts & Locknuts | 1 | |
| 8435 | Key 1/4″ x 1/4″ x 1/4″ for Rear Wheel | 2 | |
| 2555 | Uni-Hub for Sprocket, with all Hardware | 1 | |
| 2552 | Brake Assembly, 6″ w/Riveted Hub & Chrome Drum, includes Spacer Kit | 1 | |
| 2158 | Sprocket Steel 72 Tooth #35 Chain 4-9/16″ ID | 1 | |
| 8328 | Spindle Spacers 5/8″ ID | 2 | |
| 8447 | Kingpin Bolts 5/8-18 x 3-3/4″ for Spindles | 2 | |
| 8515 | Locknuts for Spindles 5/8-18 | 4 | |
| 1843 | Tie Rod Kit (1) Tie Rod 11″ x 5/16-24, (2) Female Rod Ends, (2) Jamnuts | 2 | |
| 8422 | Tie Rod Bolts 5/16-18 x 1″ | 2 | |
| 8510 | Tie Rod Locknut 5/16-18, Nylon Insert | 3 | |
| 8407 | Tie Rod Bolt 5/16-18 x 1-3/4″ | 1 | |
| 1805 | Steering Wheel 12″ Neoprene | 1 | |
| 1806 | Brake Pedal, Washers & Nuts | 1 | |
| 1811 | Throttle Pedal, Washers & Nuts | 1 | |
| 2280 | Throttle Control Rod Kit: Throttle Rod 1/4″ x 30″, Cable, Wire Stop, Hardware | 1 | |
| 2281 | Brake Control Rod Kit: Break Rod 1/4″ x 40-1/2″, Clevis & all Hardware | 1 | |
| 2290 | Bucket Seat Kit including mounting Brackets and Hardware | 1 | |
| 1645 | Bucket Seat Cover Deluxe | 1 | |
| 4318 | Chain #35 and Masterlink | 1 | |
| 1867 | Steering Shaft Assembly Kit: Steering Shaft 5/8″ x 22″, Hub & Hardware | 1 | |
| 8215 | Bushing for Steering Shaft Assembly 5/8″ ID x 11/16″ OD | 2 | |
| 1721 | Kill Button Switch, 36″ Wire | 1 | |
| 1810 | Chain Deflector, Chrome | 1 | |
| 1409 | Axle Cover, 1.5′ piece 1-1/4″split flex conduit | 1 | |
| 3502 | Kart Frame and Steering Hoop | 1 | |

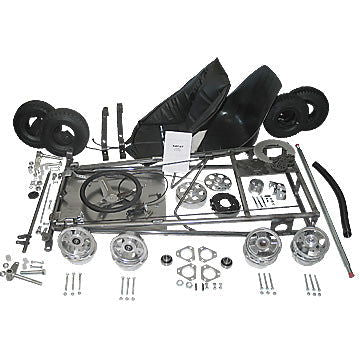

| 3551 | Gokart Kit, complete with all Parts shown above included | 1 |
view and print the complete Parts List for all above parts.
