The Pitman arms are welded in place. If you want to choose the location for the arms, choose the #1868 un-welded model.
Choose shaft length
Splined Shaft and Hub for Perfect Alignment
- Fits All Steering Wheels
- Heavy Duty Pitman Arms
2 Bolt Circles:
- 1-5/8″ Diameter
- 1-1/2″ Diameter

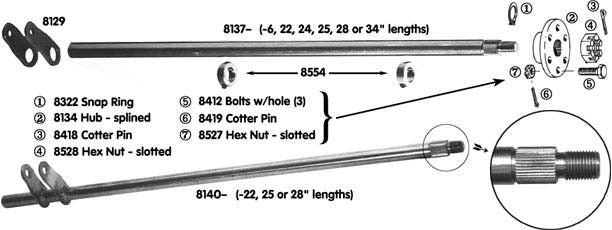

| KIT COMPONENTS | QUANTITY | PART# |
| Hub-Splined, Two Bolt Circles | (1) | 8134 |
| Pitman Arms, 5/16″ Bolt Hole | (2) | 8129 |
| Collar with Set Screw | (2) | 8554 |
| Hex Nut, Slotted 1/2-20 | (1) | 8528 |
| Bolts with Hole, 1/4-28 x 3/4″ | (3) | 8412 |
| Hex Nut, Slotted 1/4-28 | (3) | 8527 |
| Cotter Pin, 3/32″ x 3/4″ | (1) | 8418 |
| Cotter Pin, 1/16″ x 1/2″ | (3) | 8419 |
| Snap Ring | (1) | 8322 |
